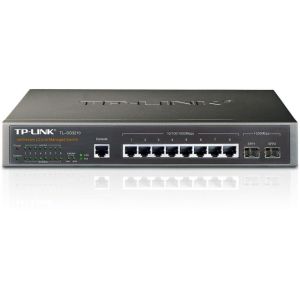

TL-SG3210 10 PorT 10/100/1000 2 Gigabit SFP Y
3.486,84 TL
| Standartlar ve Protokoller IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad, IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q, IEEE 802.1x,IEEE 802.1p Arabirim 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 1000Mbps SFP Slots 1 Console Port Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) 1000BASE-X: MMF, SMF Fan Sayısı Fanless Güç Kaynağı 100~240VAC, 50/60Hz Güç Tüketimi Maximum: 10.7W (220V/50Hz) Boyutlar ( W X D X H ) 11.6*7.9*1.7in. (294*200*44 mm) PERFORMANS Bandwidth/Backplane 20Gbps Paket Yönlendirme Hızı 14.9Mpps MAC Adres Tablosu 8k Paket Buffer Belleği 4Mb Jumbo Frame 10240 Bytes YAZILIM ÖZELLİKLERİ Quality of Service Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN L2 Özellikleri IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP Port isolation BPDU filtering/guard TC/Root protect Loop back detection 802.3x Flow Control VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based VLAN GARP/GVRP Management VLAN configuration Erişim Kontrol Listesi L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID; Time Range Based Güvenlik IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control IPv6 Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 Uygulamaları DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP Yönetim Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS | |
| Port Tipi | LC/UPC |
| Boyutlar | 11.6 X 7.9 X 1.7 inç |
| Fan Sayısı (Adet) | 10,0 |
| Veri Transfer Hızı | 10/100/1000 |
| Connector Tipi | RJ-45 |
| Forwarding Hızı | 14.9 Mbps |
| Port Sayısı (Adet) | 10,0 |
| Yönetim | Evet |
| Güç Girişi | 3.3V |
| Satış Garanti Süresi (ay) | 36 |
| Kablo Uzunluğu | 1 Metre |
| EAN | 6935364098490 |
